Dual Tank (Softener + Catalytic Carbon)
City water

Dual Tank (Softener + Catalytic Carbon)

Two tanks instead of one: a dedicated softening tank and a dedicated catalytic carbon tank, treating in stages. Built for continuous demand, and our most complete city water system.

Regular price$4,915Sale price$3,195

Installed

35% off — ends September 30, 2026

Free reverse osmosis drinking system included

All prices are for a garage or accessible waterline install. Crawl space, attic, outside or trenching installs add a $399 minimum, quoted on-site before any work begins.

Key specs

System
Softener + carbon, 2 tanks
Tanks
Two 10" × 54"
Capacity
48,000 grains + carbon tank
Flow
28 GPM valve · 27 service
Best for
10+ residents, pools
Warranty
Lifetime tanks & disc

Direct downloads. No form, no email required.

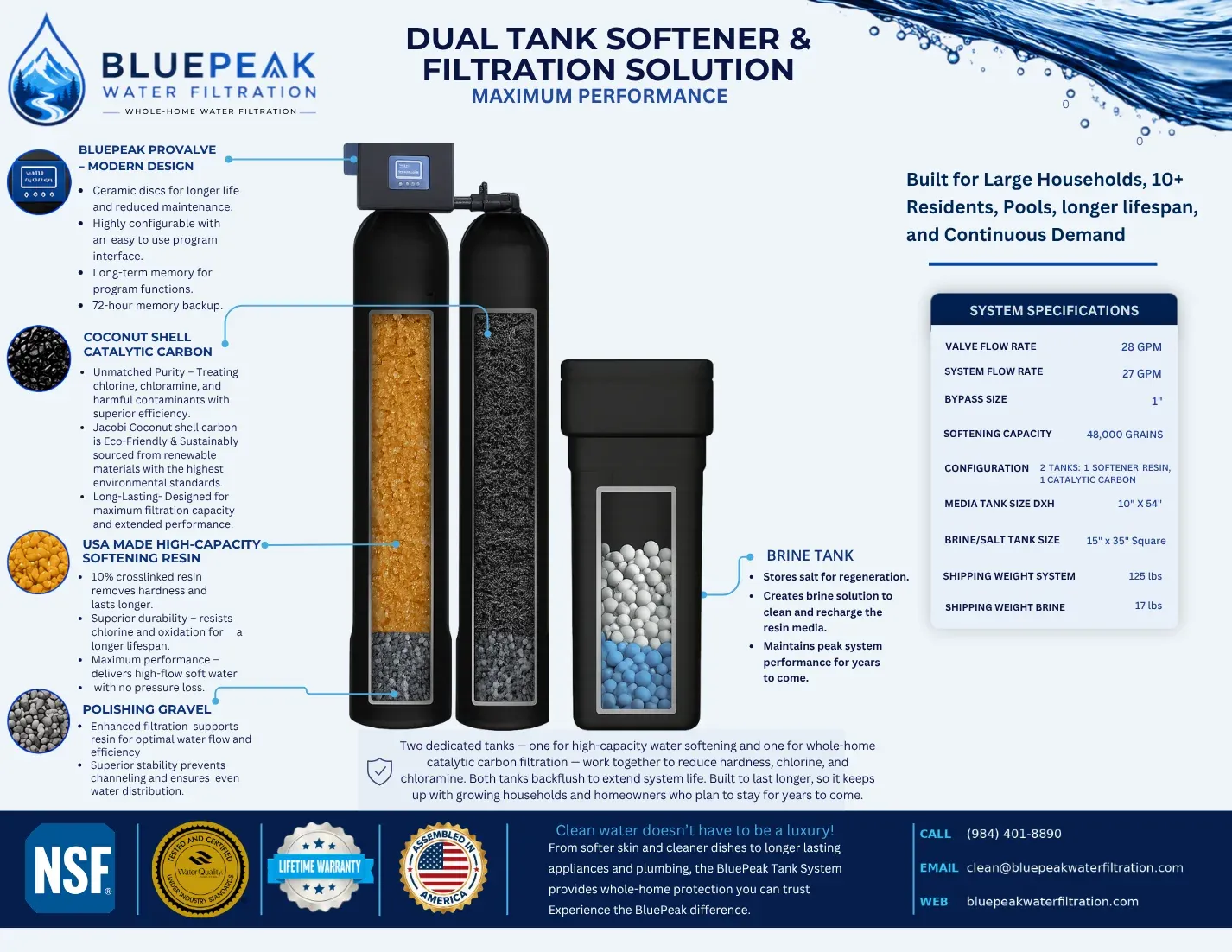

Preview of the Dual Tank (Softener + Catalytic Carbon) brochure

Full specifications

Key specifications

Softening capacity48,000 grains (resin tank)
Valve flow rate28 GPM
Service flow rate27 GPM
ConfigurationTwo tanks — one resin, one carbon
Media tanks (D × H)10" × 54" each
Brine / salt tank15" × 35" square
Connections1" NPT elbows · 1.25" distributor tube
Bypass valve1" full-flow, included
BackflushBoth tanks, to extend system life
Best suited to10+ residents, pools, continuous demand

Operating requirements

Operating pressure30 – 125 PSI
Water temperature40° – 110°F (4° – 43°C)
Electrical120V / 60Hz — 12V 650mA transformer
Inlet turbidityUnder 5 FTU
Service flow27 GPM at 15 PSI pressure drop
Backwash flow3.0 gal/min
RegenerationUpflow counter-current, demand-initiated metering

What the catalytic carbon reduces

  • Chlorine and chloramines
  • THMs & byproducts
  • VOCs
  • Pesticides and herbicides
  • Hydrogen sulfide odor
  • Taste and odor
  • Hardness (via resin)

Components and warranty

Control valveBluePeak ProValve — Hankscraft ceramic disc, assembled in Wisconsin, 72-hour memory backup
Mineral tankTwo Enpress fiberglass pressure tanks — made in Ohio · NSF-certified polishing gravel support beds
Softening resinResinTech CG10 strong-acid cation, 10% crosslinked — New Jersey, WQA Gold Seal
Carbon mediaJacobi AquaSorb CX-MCA catalytic coconut-shell carbon — steam-activated, NSF/ANSI 61 & 42
Carbon gradeCatalytic (chloramine + H₂S); iodine ≥1,000 mg/g; 1,050 m²/g surface area
AssemblyAssembled in Texas
CertificationsCertified to NSF/ANSI 42, 44 and 61
WarrantyLifetime — both media tanks, brine tank & ceramic disc · 5 years — valve body, board, resin & carbon · 1 year — labor
InstallationIncluded — by a licensed North Carolina plumber
Drinking waterFree reverse osmosis drinking system included, installed at the kitchen sink

Real installs

This system, installed by BluePeak in Triangle homes. Select a photo to enlarge it.

  • BluePeak Dual Tank system in a Durham garage: two black media tanks and a brine tank beside the garage steps
    Dual Tank · Durham

See the full install gallery ›

What it does

Water passes through two 10 x 54 inch tanks, one after the other. One holds ResinTech CG10 softening resin, rated at 48,000 grains, and takes out the calcium and magnesium behind scale and spotting. The other is a dedicated bed of Jacobi catalytic coconut-shell carbon for chlorine, chloramine, taste and smell.

Softening does not clean your water and filtering does not soften it. They are two different jobs, and here each one gets a full tank of its own media instead of sharing a bed. Both tanks backflush to extend the life of the system, on a BluePeak ProValve ceramic disc valve.

Who it is for

Homes that never really stop using water: ten or more residents, a pool to keep topped up, or back-to-back demand all day.

For most city homes the Single Tank does both jobs in one tank for less, and the Single Tank XL covers four or more bathrooms. This system is for the houses where that is still not enough. If you are on a well rather than city water, the well water systems are a different build and a better fit.

Questions about this system

Single tank or dual tank — how do I know?

It comes down to how much water you use and what is in it. Our Single Tank puts softening resin and catalytic carbon together in one mixed bed, which suits most city homes with up to three bathrooms, and the Single Tank XL is the same build sized for four or more. A dual tank gives each media its own tank — a softener tank plus a catalytic carbon tank on city water, or on a well, a softener tank plus an iron and sulfur tank. Continuous demand and harder problems push you toward dual. We size it off your test and your household, not your square footage.

What’s the difference between a water softener and a water filter?

Different jobs. A softener uses resin and salt to remove calcium and magnesium — the minerals that cause scale, spotting and that film on your skin. A filter uses carbon or specialty media to remove chlorine, taste, odor and other contaminants. Softening doesn’t clean your water; filtering doesn’t soften it. Most Triangle city homes need filtering more than softening. Well homes often need both, plus more.

How much salt will I use?

For a typical Triangle household on a properly sized softener, figure on a bag every two to three months. It depends on your hardness level and how much water you use. If you’re going through salt much faster than that, something is set wrong.

Will this hurt my water pressure?

A properly sized system, no. An undersized one, yes — which is the most common installation mistake in this industry. Our systems are sized on service flow rate against your household’s peak demand. If someone quotes you a system without asking how many bathrooms you have, that’s a red flag.

Read the full Answer Center ›

Start with a free water test.

We test at your kitchen sink and show you the results on the spot. If this is not the right system for your water, we will tell you which one is, or that you do not need one at all.
